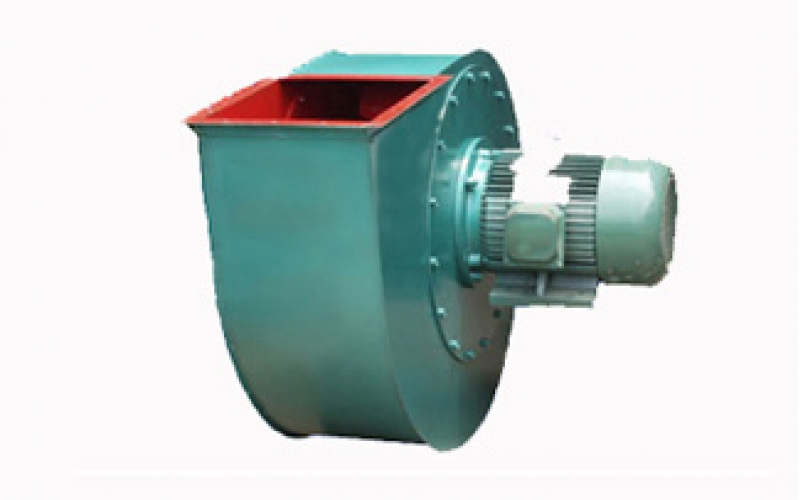

C6-46型排尘离心通风机适用于排送含有木质碎屑，纤维和尘土等的空气混合物，介质温度不超过80℃。

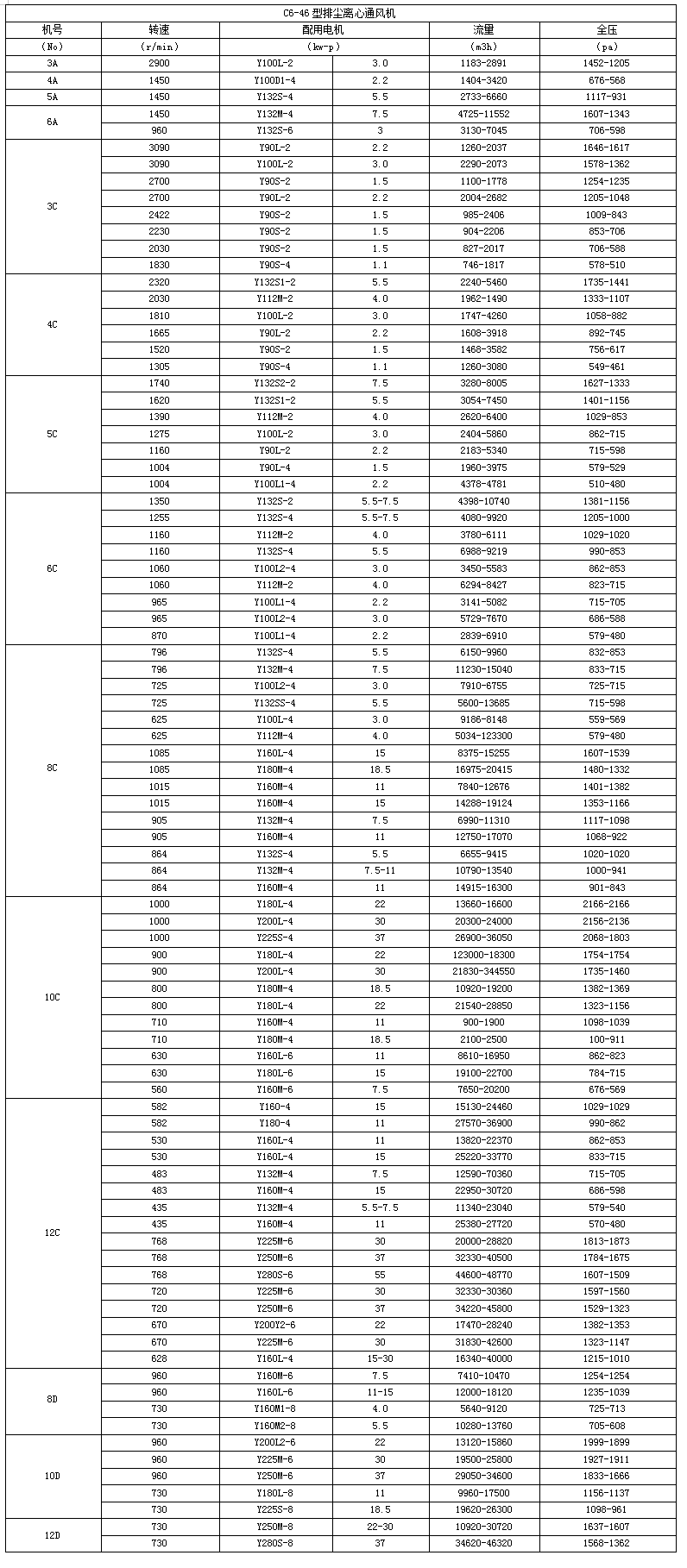

C6-46型排尘离心通风机 | |||||
| 机号 | 转速 | 配用电机 | 流量 | 全压 | |
| （No） | （r/min） | （kw-p） | （m3h） | （pa） | |
| 3A | 2900 | Y100L-2 | 3.0 | 1183-2891 | 1452-1205 |
| 4A | 1450 | Y100D1-4 | 2.2 | 1404-3420 | 676-568 |
| 5A | 1450 | Y132S-4 | 5.5 | 2733-6660 | 1117-931 |
| 6A | 1450 | Y132M-4 | 7.5 | 4725-11552 | 1607-1343 |
| 960 | Y132S-6 | 3 | 3130-7045 | 706-598 | |
| 3C | 3090 | Y90L-2 | 2.2 | 1260-2037 | 1646-1617 |
| 3090 | Y100L-2 | 3.0 | 2290-2073 | 1578-1362 | |
| 2700 | Y90S-2 | 1.5 | 1100-1778 | 1254-1235 | |
| 2700 | Y90L-2 | 2.2 | 2004-2682 | 1205-1048 | |
| 2422 | Y90S-2 | 1.5 | 985-2406 | 1009-843 | |
| 2230 | Y90S-2 | 1.5 | 904-2206 | 853-706 | |
| 2030 | Y90S-2 | 1.5 | 827-2017 | 706-588 | |
| 1830 | Y90S-4 | 1.1 | 746-1817 | 578-510 | |
| 4C | 2320 | Y132S1-2 | 5.5 | 2240-5460 | 1735-1441 |
| 2030 | Y112M-2 | 4.0 | 1962-1490 | 1333-1107 | |
| 1810 | Y100L-2 | 3.0 | 1747-4260 | 1058-882 | |
| 1665 | Y90L-2 | 2.2 | 1608-3918 | 892-745 | |
| 1520 | Y90S-2 | 1.5 | 1468-3582 | 756-617 | |
| 1305 | Y90S-4 | 1.1 | 1260-3080 | 549-461 | |
| 5C | 1740 | Y132S2-2 | 7.5 | 3280-8005 | 1627-1333 |
| 1620 | Y132S1-2 | 5.5 | 3054-7450 | 1401-1156 | |
| 1390 | Y112M-2 | 4.0 | 2620-6400 | 1029-853 | |
| 1275 | Y100L-2 | 3.0 | 2404-5860 | 862-715 | |
| 1160 | Y90L-2 | 2.2 | 2183-5340 | 715-598 | |
| 1004 | Y90L-4 | 1.5 | 1960-3975 | 579-529 | |
| 1004 | Y100L1-4 | 2.2 | 4378-4781 | 510-480 | |
| 6C | 1350 | Y132S-2 | 5.5-7.5 | 4398-10740 | 1381-1156 |
| 1255 | Y132S-4 | 5.5-7.5 | 4080-9920 | 1205-1000 | |
| 1160 | Y112M-2 | 4.0 | 3780-6111 | 1029-1020 | |
| 1160 | Y132S-4 | 5.5 | 6988-9219 | 990-853 | |
| 1060 | Y100L2-4 | 3.0 | 3450-5583 | 862-853 | |
| 1060 | Y112M-2 | 4.0 | 6294-8427 | 823-715 | |
| 965 | Y100L1-4 | 2.2 | 3141-5082 | 715-705 | |
| 965 | Y100L2-4 | 3.0 | 5729-7670 | 686-588 | |
| 870 | Y100L1-4 | 2.2 | 2839-6910 | 579-480 | |
| 8C | 796 | Y132S-4 | 5.5 | 6150-9960 | 832-853 |
| 796 | Y132M-4 | 7.5 | 11230-15040 | 833-715 | |
| 725 | Y100L2-4 | 3.0 | 7910-6755 | 725-715 | |
| 725 | Y132SS-4 | 5.5 | 5600-13685 | 715-598 | |
| 625 | Y100L-4 | 3.0 | 9186-8148 | 559-569 | |
| 625 | Y112M-4 | 4.0 | 5034-123300 | 579-480 | |
| 1085 | Y160L-4 | 15 | 8375-15255 | 1607-1539 | |
| 1085 | Y180M-4 | 18.5 | 16975-20415 | 1480-1332 | |
| 1015 | Y160M-4 | 11 | 7840-12676 | 1401-1382 | |
| 1015 | Y160M-4 | 15 | 14288-19124 | 1353-1166 | |
| 905 | Y132M-4 | 7.5 | 6990-11310 | 1117-1098 | |
| 905 | Y160M-4 | 11 | 12750-17070 | 1068-922 | |
| 864 | Y132S-4 | 5.5 | 6655-9415 | 1020-1020 | |
| 864 | Y132M-4 | 7.5-11 | 10790-13540 | 1000-941 | |
| 864 | Y160M-4 | 11 | 14915-16300 | 901-843 | |
| 10C | 1000 | Y180L-4 | 22 | 13660-16600 | 2166-2166 |
| 1000 | Y200L-4 | 30 | 20300-24000 | 2156-2136 | |
| 1000 | Y225S-4 | 37 | 26900-36050 | 2068-1803 | |
| 900 | Y180L-4 | 22 | 123000-18300 | 1754-1754 | |
| 900 | Y200L-4 | 30 | 21830-344550 | 1735-1460 | |
| 800 | Y180M-4 | 18.5 | 10920-19200 | 1382-1369 | |
| 800 | Y180L-4 | 22 | 21540-28850 | 1323-1156 | |
| 710 | Y160M-4 | 11 | 900-1900 | 1098-1039 | |
| 710 | Y180M-4 | 18.5 | 2100-2500 | 100-911 | |
| 630 | Y160L-6 | 11 | 8610-16950 | 862-823 | |
| 630 | Y180L-6 | 15 | 19100-22700 | 784-715 | |
| 560 | Y160M-6 | 7.5 | 7650-20200 | 676-569 | |
| 12C | 582 | Y160-4 | 15 | 15130-24460 | 1029-1029 |
| 582 | Y180-4 | 11 | 27570-36900 | 990-862 | |
| 530 | Y160L-4 | 11 | 13820-22370 | 862-853 | |
| 530 | Y160L-4 | 15 | 25220-33770 | 833-715 | |
| 483 | Y132M-4 | 7.5 | 12590-70360 | 715-705 | |
| 483 | Y160M-4 | 15 | 22950-30720 | 686-598 | |
| 435 | Y132M-4 | 5.5-7.5 | 11340-23040 | 579-540 | |
| 435 | Y160M-4 | 11 | 25380-27720 | 570-480 | |
| 768 | Y225M-6 | 30 | 20000-28820 | 1813-1873 | |
| 768 | Y250M-6 | 37 | 32330-40500 | 1784-1675 | |
| 768 | Y280S-6 | 55 | 44600-48770 | 1607-1509 | |
| 720 | Y225M-6 | 30 | 32330-30360 | 1597-1560 | |
| 720 | Y250M-6 | 37 | 34220-45800 | 1529-1323 | |
| 670 | Y200Y2-6 | 22 | 17470-28240 | 1382-1353 | |
| 670 | Y225M-6 | 30 | 31830-42600 | 1323-1147 | |
| 628 | Y160L-4 | 15-30 | 16340-40000 | 1215-1010 | |
| 8D | 960 | Y160M-6 | 7.5 | 7410-10470 | 1254-1254 |
| 960 | Y160L-6 | 11-15 | 12000-18120 | 1235-1039 | |
| 730 | Y160M1-8 | 4.0 | 5640-9120 | 725-713 | |
| 730 | Y160M2-8 | 5.5 | 10280-13760 | 705-608 | |
| 10D | 960 | Y200L2-6 | 22 | 13120-15860 | 1999-1899 |
| 960 | Y225M-6 | 30 | 19500-25800 | 1927-1911 | |
| 960 | Y250M-6 | 37 | 29050-34600 | 1833-1666 | |
| 730 | Y180L-8 | 11 | 9960-17500 | 1156-1137 | |
| 730 | Y225S-8 | 18.5 | 19620-26300 | 1098-961 | |
| 12D | 730 | Y250M-8 | 22-30 | 10920-30720 | 1637-1607 |
| 730 | Y280S-8 | 37 | 34620-46320 | 1568-1362 | |
